HAISAN，One-Stop Geomaterials Solution for All Your Civil Construction&
4 Years
| Ask Lasest Price | |
| Brand Name : | HASSAN |
| Model Number : | LDPE |
| Certification : | CE ISO9001 |
| Price : | $0.1-1/square meters |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 30000 square meters per day |
| Delivery Time : | 3-5days |
LDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties | Test method ASTM | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation | D 6693 Type IV | 8 kN/m 14kN/m 12% 700% | 11 kN/m 20kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29 kN/m 53 kN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT | D 3895 D 5885 | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. |
What kind of geomembrane do you need?
 | Environmental Protection: For example, landfills, sewage treatment plants, power plant regulating pools, industrial and hospital solid wastes, etc. |
| Water Conservancy: For example, seepage prevention, plugging, reinforcement, canal seepage prevention, vertical core wall, slope protection, etc. |  |
 | Aquaculture Industry: Intensive, industrialized aquaculture ponds, fish ponds, shrimp ponds lining, sea cucumber circle protection, etc. |
| Gardens: Artificial lakes, rivers, reservoirs, golf pools, slope protection, greening lawns, waterproofing and moisture-proof. |  |
 | Petrifaction: Chemical plant, refinery, storage tank seepage control, chemical reaction tank, sedimentation tank lining, two liner, etc. |
| Agriculture: Seepage control of reservoirs, application pools, reservoirs, irrigation systems, etc. |  |
 | Salt Industry: Salt pond, salt film and salt pond plastic film |
We can all satisfy you!!!

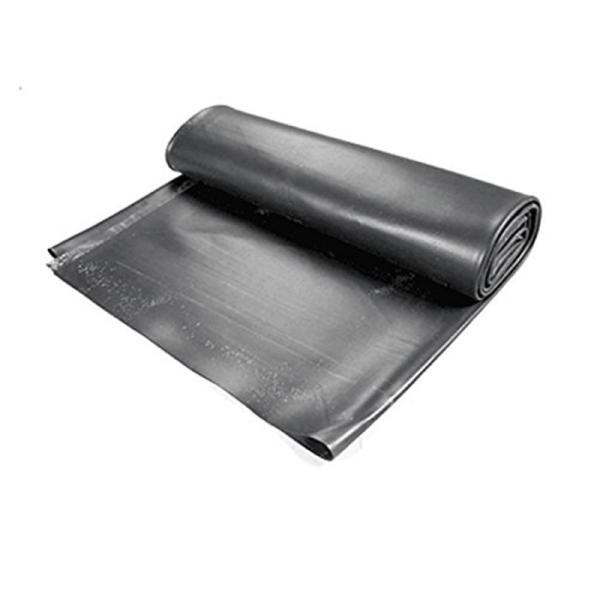

Product Introduction
Environmental Protection hdpe smooth fish farm pond liner geomembrane
Our high density polyethylene (LDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.
Geomembrane production
LDPE geomembrane is made by 100% virgin materials
Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
|
|
