Introduction:

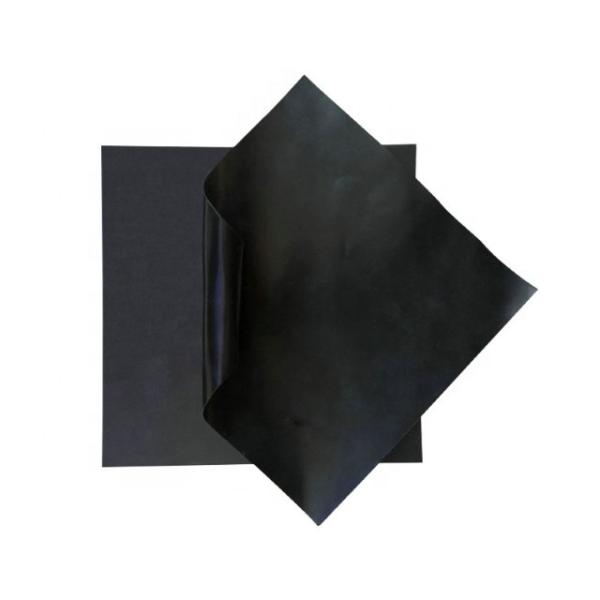

high density polyethylene(HDPE) smooth liner ,made of virgin resin
by special production ,has even and smooth surface on both sides.
It is especially designed for flexible geomembrane liner.
Features:
1. Good physical and mechanic performance.
2. High tearing resistance, strong deformation adaptability.
3. Puncture-resisting, aging resisting, ultra-violet radiation, oil
and salt, and corrosion resistance.
4. Good adaptability to high and low temperature, non-toxicity,
long service life.
5. Good waterproof, drainage, anti-seepage and damp proof effects.
6. Complete width and thickness specifications, low cost and easy
installation.
HDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties | Test method ASTM | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation | D 6693 Type IV | 8 kN/m 14kN/m 12% 700% | 11 kN/m 20kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29 kN/m 53 kN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT | D 3895 D 5885 | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. |
Applications:
1. Environmental protection and sanitation like waste landfill,
sewage treatment, industrial waste, etc.
2. Water conservancy such as anti-seepage, leakage blockage and
reinforcement of river, etc.
3. Municipal projects such as underground project, subway, planting
roof, etc.
4. Landscape garden such as artificial river, bottom lining,
damp-proof, etc.
5. Mine industry such as bottom lining and anti-seepage.
6. Traffic facilities such as road foundation and anti-seepage of
subway and culvert.
7. Agriculture such as anti-seepage of ditch, channel, reservoir,
pool and irrigation system.
Blue and green geomembrane
Packing and Shipping:
1. Packing:
PP woven geotextile bags or PE film. Or according to customers
requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
HDPE Geomembrane Application:
(1) Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can
be used as fish ponds, shrimp pond, tank liner and others.
(2) Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage
engineering material. The use of main parts of the bottom of the
landfill liner, landfill sealing cover, leachate regulating pool
liner, etc.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
|
|
